Aligned testing

Aligned testing uses Test Harness for both sending and receiving.

Run active mode tests on the sending and receiving side to see the sample payments execute automatically.

Mock sender

Start by opening an active test on the sending side.

  1. In the Test Harness UI, click Sender Tests > Passive Mode.
  2. Enable AUTO LOCK ACCEPTED QUOTES and AUTO COMPLETE PAYMENTS.
  3. Refer to Sender sample data and upload: ripple_sample_rpo_schema.json and ripple_sample_test_profile_sendtest.json.
  4. Click Active Mode > New Test and create a new active test with Ripple Sample Sender Test Profile and Ripple Sample RPO Schema.

Mock receiver

Opening an active test on the sending side, with data that aligns with the open active test on the receiving side, triggers the tests to run.

  1. In the Test Harness UI, click Receiver Tests > Passive Mode > Settings.
  2. Enable AUTO SETTLE LOCKED PAYMENTS.
  3. Refer to Receiver sample data and upload: ripple_sample_payment_template.csv and ripple_sample_test_profile_recvtest.json.
  4. Click Active Mode > New Test and create a new active test with Ripple Sample Receiver Test Profile and Ripple Sample Payment Template Set.

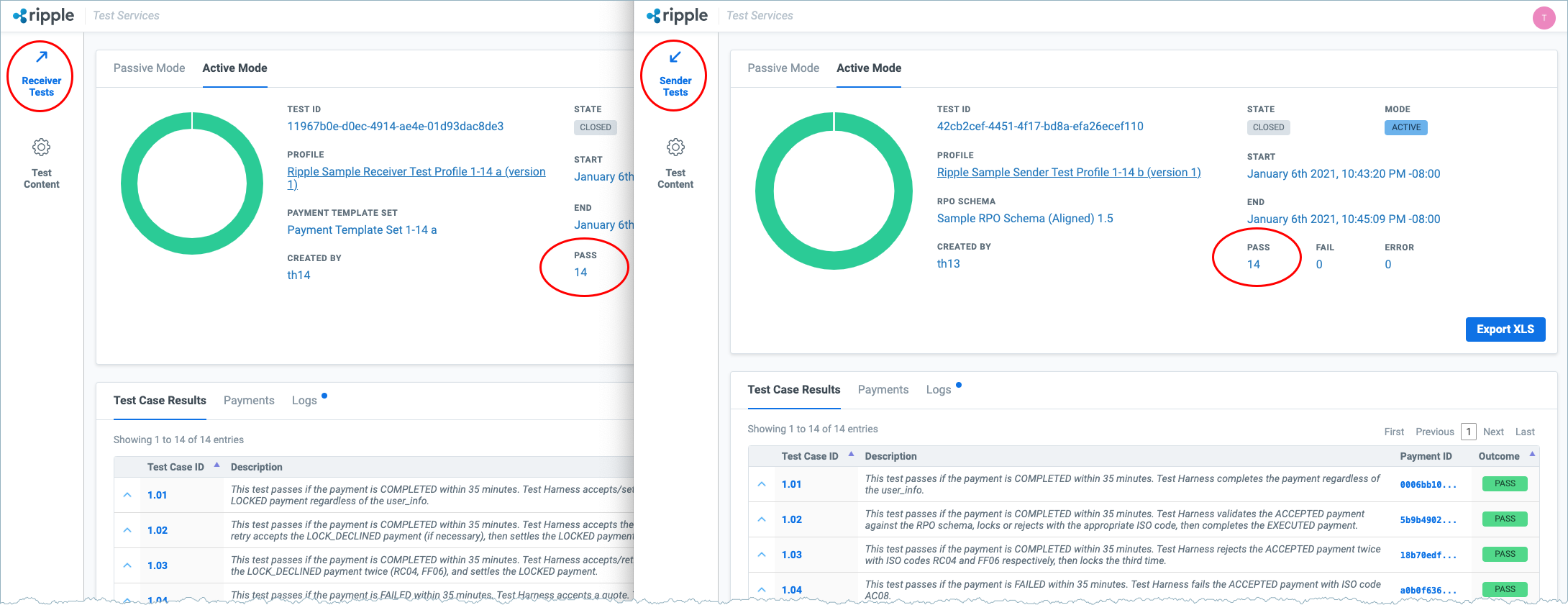

Aligned Testing
