Deploy a vault

Learn how you can deploy a vault to connect an IBM Cloud HSM by using the available from the IBM Cloud marketplace.

Before you can deploy the vault, you need to install the which you can get from the Ripple Custody Cloud catalog on IBM Cloud marketplace. To get access:

1. Accept Ripple's e-mail invitation to the private IBM Cloud catalog.

2. Navigate to the .

3. Complete all required fields and select Install.

4. In your IBM Cloud account, navigate to the Resource list and identify the new app ID (Identity provider).

   1. Navigate to Manage Authentication > Cloud Directory > Users.
   2. Select Create User and assign access to users who will use the .

5. In your IBM Cloud account, navigate to Containers > Serverless > Projects.

   1. Select Applications.
   2. Identify the new code engine application and then select Open URL.

From the you just opened, you (or any assigned user) can now deploy the vault:

1. Enter your username and password.

2. Check your e-mail for the multi-factor authentication code, enter the code, and then select Continue.

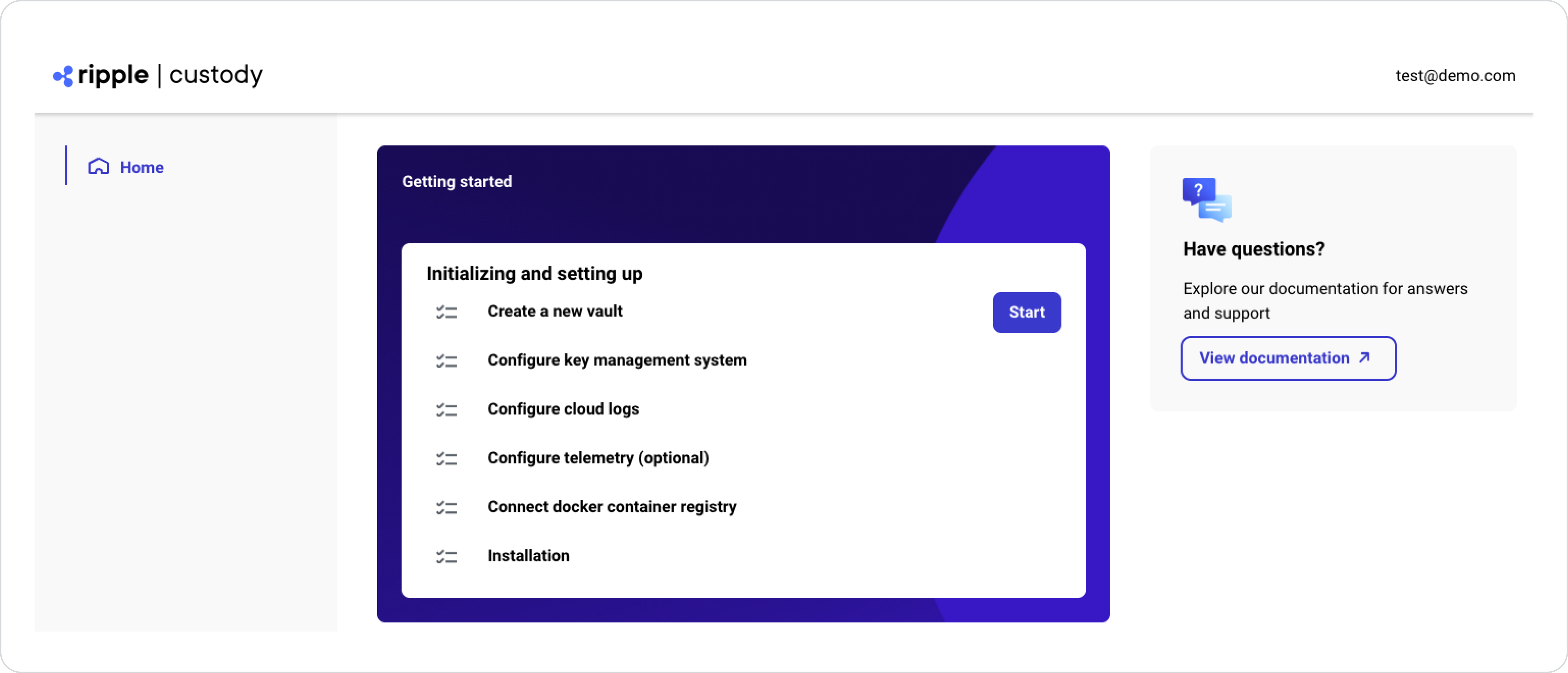

   This screen shows the with the Getting started widget from where you can start to deploy the vault.



3. On the Getting started widget, select Start and complete all sections to deploy a vault:

   • Create a new vault
   • Configure key management system
   • Configure cloud logs
   • Configure telemetry (optional)
   • Connect a Docker container registry
   • Installation
   Note:

   The provides step-by-step instructions to guide you through the onboarding experience.

   Once you submit for installation, it takes from three to five minutes to create the resources on IBM Cloud. A summary page will be displayed once the process is complete.

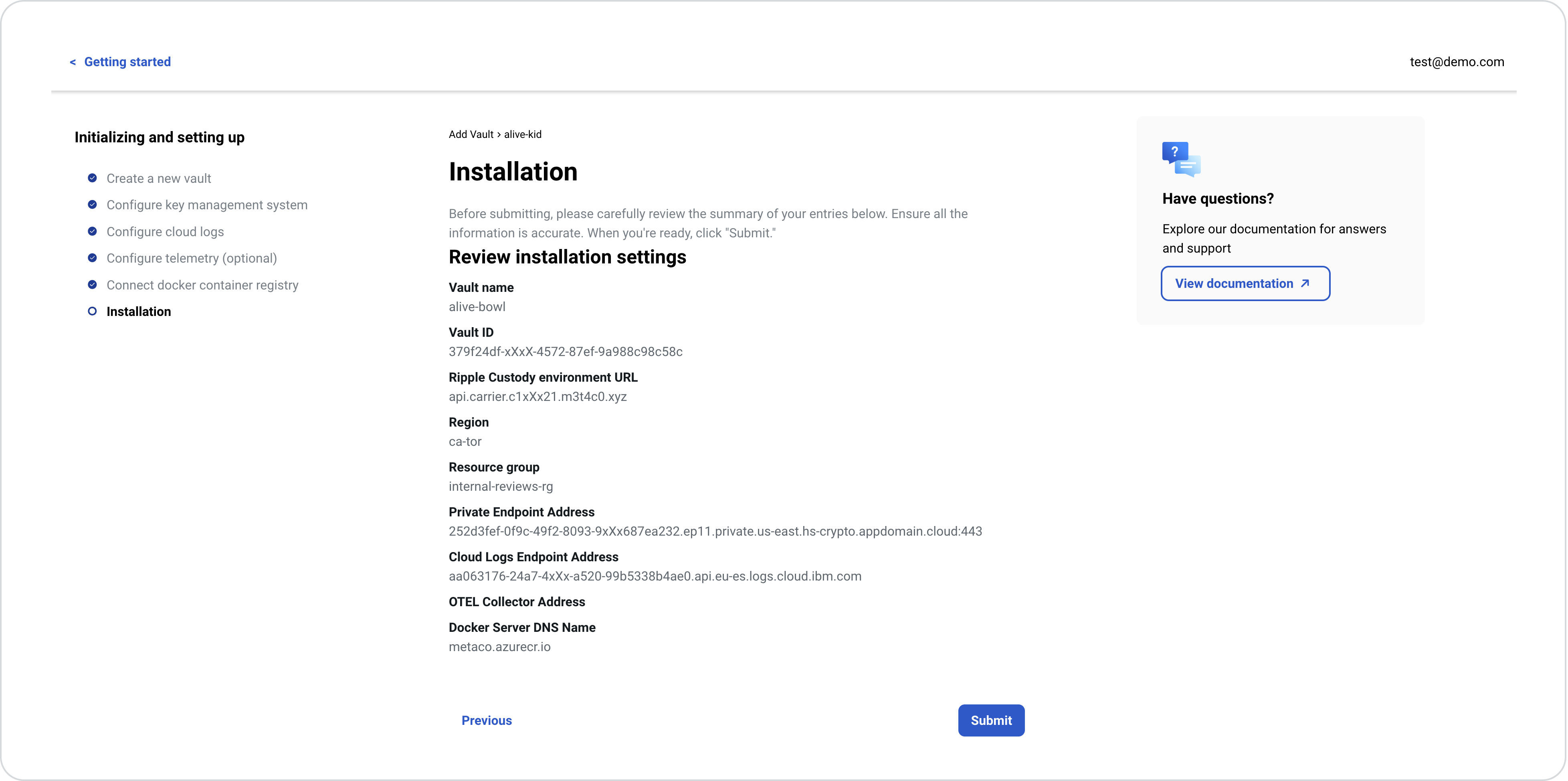

   This screen shows the with the summary of the settings you selected for deploying the vault. Review the summary before you select Submit.

After the installation is complete, you must connect your vault to your Ripple Custody instance.

1. In the , select Open Ripple Custody instance.

2. Log in to your Ripple Custody instance.

3. Select Administration > Vaults > Create a vault.

4. In the Vault name field, enter a unique name for the vault.

5. From the , copy the ID and paste it into the ID field in your Ripple Custody instance.

6. From the , copy the Public key and paste it into the Vault public key field in your Ripple Custody instance.

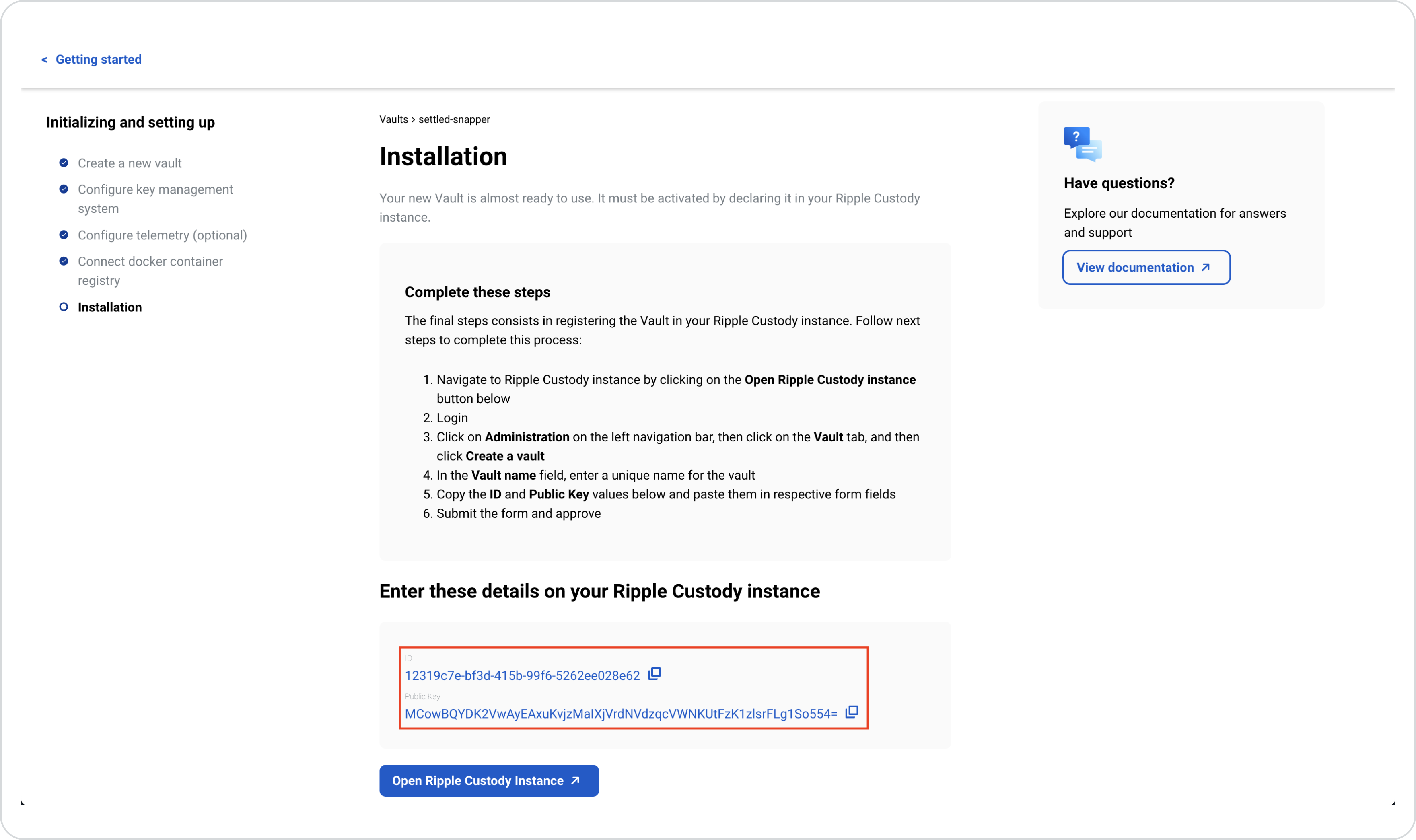

   This screen shows the with the ID and the public key that you must copy and then paste into your Ripple Custody instance to connect the vault.

7. Select Submit for approval and follow your respective approval process.
